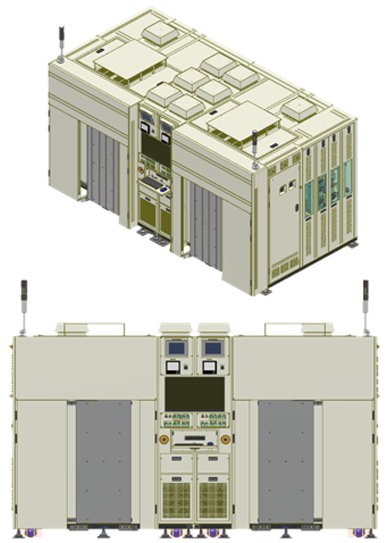

CHAMBER
JST 챔버 용도 및 특장점
- High Speed NAND Memory 검사시 온도 환경을 제공하는 챔버.
- 극저온/초고온/고 발열칩 대응 가능.
- Auto Door/Auto Contact/AGV를 이용한 Full Auto 기능 내장. (특허 보유)
- Auto Temperature Calibration 기능(Option)
- Energy Saving Operation(Option)
High Speed NAND Test용
| ITEM | SPECIFICATION | |
|---|---|---|
| Construction | Chamber Quantity | 2 Chamber |
| Slot | 32 Slot, 16Slot/Chamber | |
| Chamber Door | Auto Door, Auto Lock | |
| BIB Board Slot Contact | Auto Contact | |
| Dimension | W3800 x D1920 x H2300 | |
| Weight | 4,600kg | |
| Temperature | Operating Temp Range | -40℃~125℃ |
| Heat Load |
3 Kw @ 16 Slot x 2 Zone = 6 Kw |
|
| Temp. Uniformity / Load | ±3.0℃ / 3kW | |
| Heating & Cooling Time |
-40℃ to 125℃ ≤ 50 min 125℃ to -40℃ ≤ 50 min |
|
