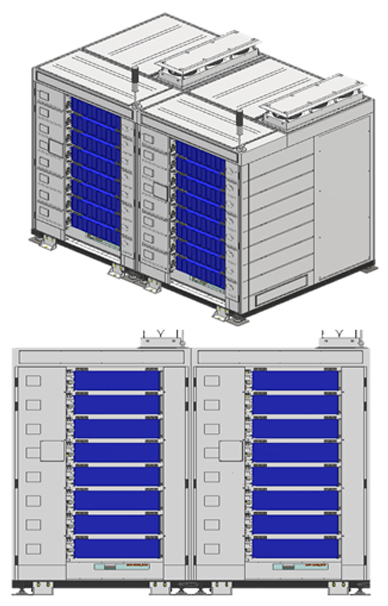

CHAMBER
JST 챔버 용도 및 특장점
- DRAM, NAND 등 Sample 검사시 온도 환경을 제공하는 챔버.
- 극저온/초고온/고 발열칩 대응 가능.
- Auto Door/Auto Contact/AGV를 이용한 Full Auto 기능 내장.
- Auto Temperature Calibration 기능(Option)
- Energy Saving Operation(Option)
High Speed Memory Sample Test용
| ITEM | SPECIFICATION | |
|---|---|---|
| Construction | Chamber Quantity | 16 Chamber |
| Slot | 32 Slot, 16Slot/Chamber | |
| Chamber Door | Auto Door, Auto Lock | |
| BIB Board Slot Contact | Auto Contact | |
| Dimension | W2600 x D1600 x H2570 | |
| Weight | 3,500kg | |
| Temperature | Operating Temp Range | -10℃~150℃ |
| Heat Load |
0.35 Kw @ 1 Slot x 16 Zone = 5.6 Kw |
|
| Temp. Uniformity / Load |
10~125℃ : ±2.0℃ / No Load 126~150℃ : ±3.0℃ / No Load |
|
| Heating & Cooling Time |
-10℃ to 25℃ ≤ 10 min 25℃ to 150℃ ≤ 50 min 150℃ to 25℃ ≤ 30 min 25℃ to -10℃ ≤ 50 min |
|
